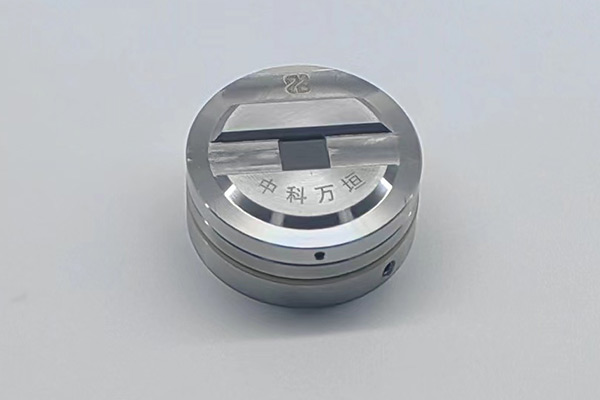

In situ XRD device for solid state batteries

1. Product use

1) The device is mainly used in the collection of X-ray in-situ characterization data during the charging and discharging process of solid state batteries;

2) The device is made of high-quality 316L stainless steel, with good strength and corrosion resistance;

3) The device is sealed with O-ring, which has good sealing property;

4) The device has a built-in ceramic isolation chamber, with good insulation and compressive strength;

5) Easy to operate, small size, easy to disassemble and assemble, the overall size is 50 mm, the overall thickness is 21.5mm;

6) Solid electrolyte does not need to strip, can be directly tested in the in-situ pool, improve the sample yield;

7) The in-situ pool is pressed by thread, which can provide better pressure for solid electrolyte;

8) The X-ray entrance and diffraction of the device have a large Angle, and can achieve a large X-ray detection Angle of 10°< 2θ< 90°;

9) Imported beryllium window; The device is suitable for Bruker, Nico, Panaco brand diffractometer models.
