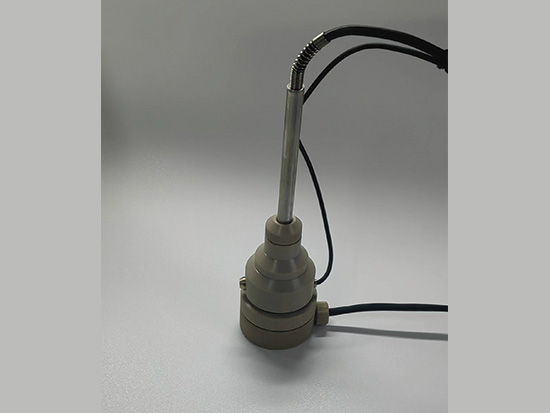

Controllable temperature pressure thickness precision on-line monitoring system

1. Product features

1) The device is used to detect changes in pressure and thickness during charging and discharging of liquid battery or solid battery and in real time

Monitoring records;

2) The device is composed of in-situ test pool, upper computer software, controller, etc

3) Device diameter 45mm, height 80mm(with fixed support), sample diameter (12mm-20mm) can be customized;

4) The accuracy of the pressure sensor is 0.1%, the minimum display unit g or N, and the thickness detection accuracy is <1um;

5) The device is mainly made of PEEK material, acid and alkali resistance, O-ring sealing, good sealing;

6) The device can be optional heating function, temperature control range of room temperature -150℃, temperature control accuracy <0.5℃
