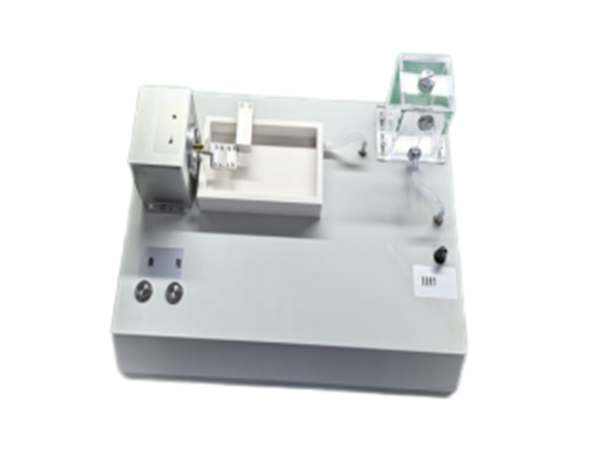

1.The tensile tester is composed of a stretching main body, motion system, temperature‑control system and upper‑computer control system.

2.Stretching range: 0‑500 mm; stretching accuracy: 0.1 mm.

3.Overall dimensions of the tensile tester: 400280120 mm.

4.Full travel of the displacement stage: 0‑80 mm, displacement accuracy: 10 μm. It is provided with zero‑point reset, repeated stretching, 3K high‑speed data acquisition and other functions.

5.Accurate temperature control from room temperature to 150 °C, with a temperature‑control accuracy lower than 0.3 °C.

6.The stretching test supports post‑processing of tensile force and strain data.

7.Working curves can be recorded and stored, and the data can be exported.

Product features 1.Zero‑point reset 2.Cyclic stretching 3.Variable‑temperature stretching 4.3K high‑speed data acquisition 5.In‑situ testing

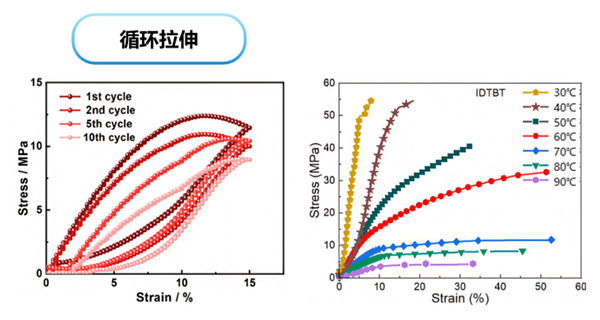

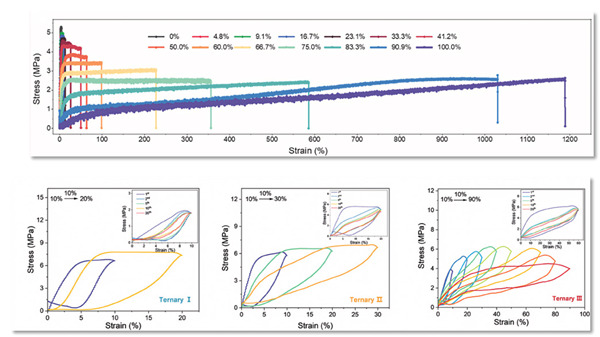

Typical examples:

dvanced Materials, 2024, 36, 2307278.Energy & Environmental Science, 2024, DOI: 10.1039/D4EE01708K
