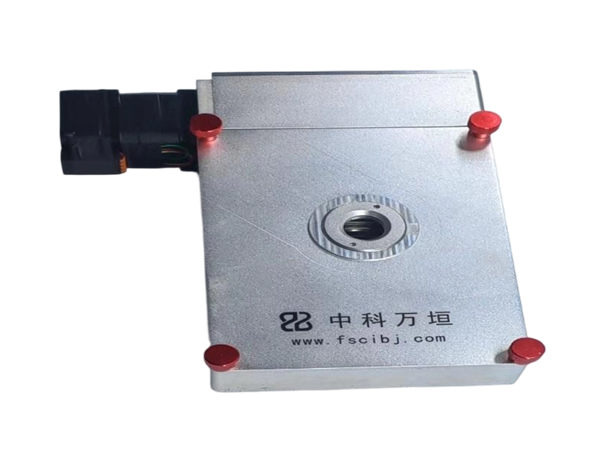

In‑situ Tensile Tester

Device Parameters:

1. The device is suitable for in‑situ tensile tests of various materials such as polymers.

2. The device consists of tensile tester, controller and upper‑computer software (high‑low‑temperature test environment is optional).

3. A bidirectional synchronous‑stretching structure is adopted to keep the sample test center unchanged.

4. Tensile‑force range: 0‑300 N (optional); tensile accuracy: 0.05% of full‑scale range.

5. The tester supports high‑speed data acquisition and tensile‑curve recording; data‑processing function is optional.

6. The window is designed for transmission mode and replaceable, adapting to different test methods.

7. Overall dimension: 180 mm*120 mm*30 mm
